DISTRIBUTION BOX

TSM Series

4-36 way electrical distribution boxes are available. Provide invisible green and dark brawn color for the PC cover of distribution box. Provide 2 kinds of copper connection bar and mounting rail inside.

※ Rated Voltage/Frequency: 690V/50~60HZ
※ Material: Cover-PC. Body-ABS
※ Color: White
※ Tested and approved to EN60947-1
※ CE Certified
※ Din Rail connection according to EN50022
※ Supplied with removable earth/neutral bar

CONFIGURATION

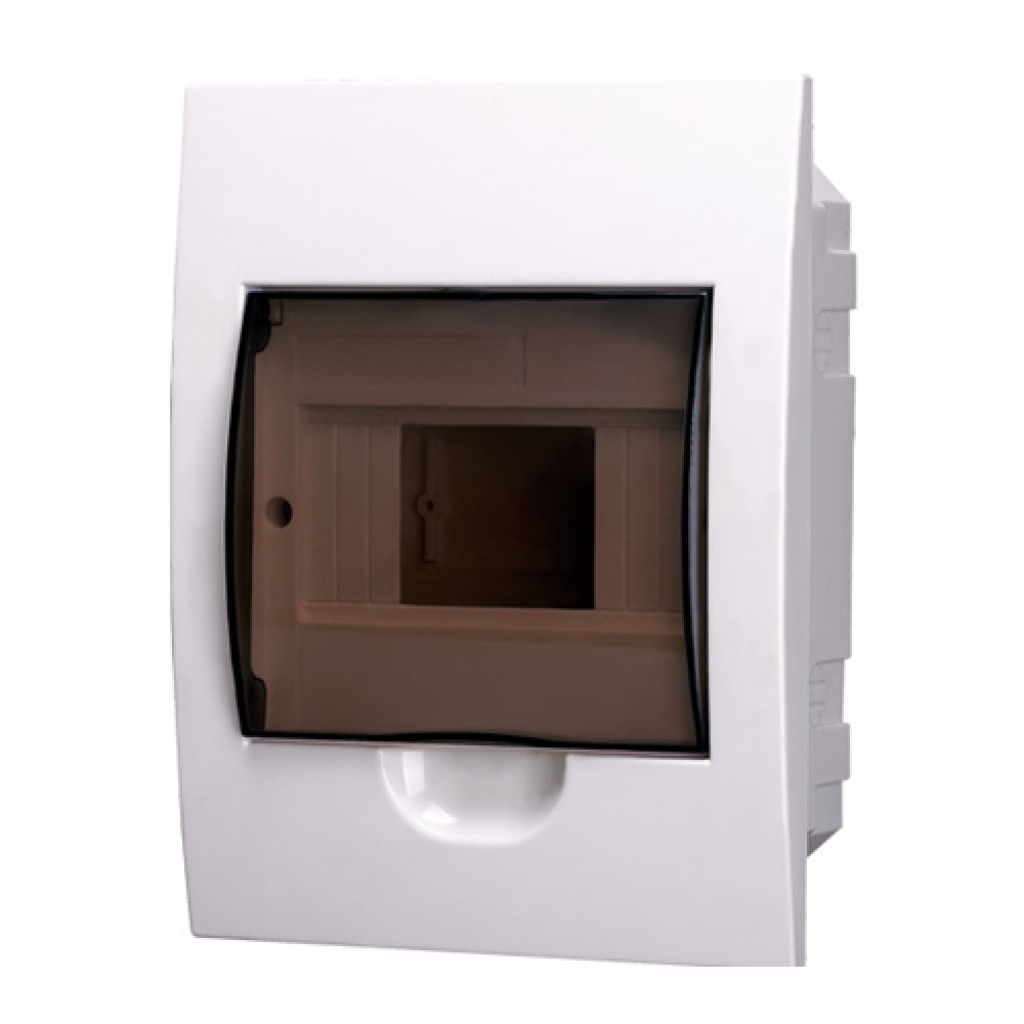

Plastic Distribution Box TSM Series(Recessed Type)
Model No. Dimension(LxWxH) mm
TSM-F 3 ways 95x150x60
TSM-F-4 ways 136x221x90
TSM-F-6 ways 172x221x90
TSM-F-8 ways 208x221x90
TSM-F-10 ways 246x221x90
TSM-F-12 ways 278x221x90
TSM-F-15 ways 334x221x90
TSM-F-18 ways 398x251x100
TSM-F-24 ways 300x350x100
TSM-F-36 ways 300x482x100
TSM-F-45 ways 365x505x110

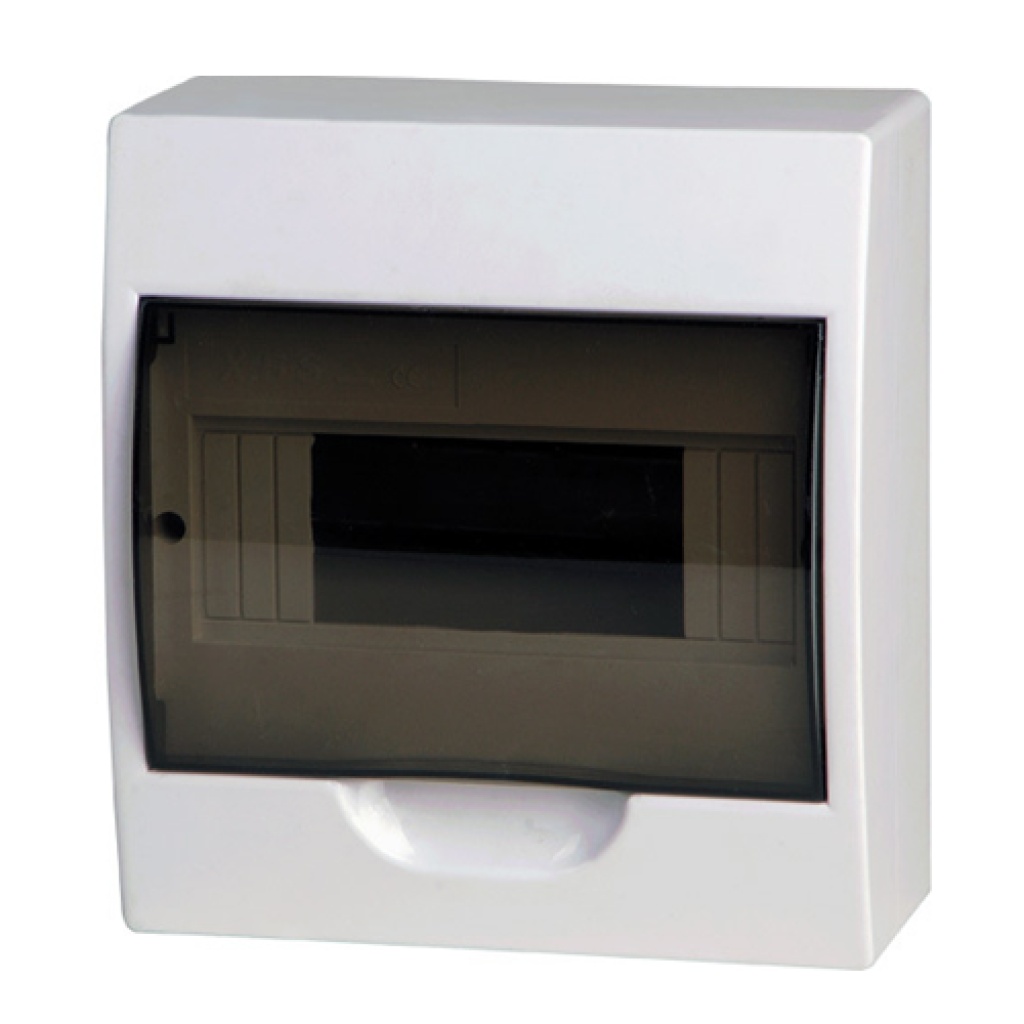

Plastic Distribution Box TSM Series(Surfaced Type)
Model Dimension(LxWxH) mm
TSM-S-3 ways 95x150x60
TSM-S-4 ways 136x221x90
TSM-S-6 ways 172x221x90
TSM-S-8 ways 208x221x90
TSM-S-10 ways 246x221x90
TSM-S-12 ways 278x221x90
TSM-S-15 ways 334x221x90
TSM-S-18 ways 398x251x100
TSM-S-24 ways 300x350x100
TSM-S-36 ways 300x482x100
TSM-S-45 ways 365x505x110
