DISTRIBUTION BOX

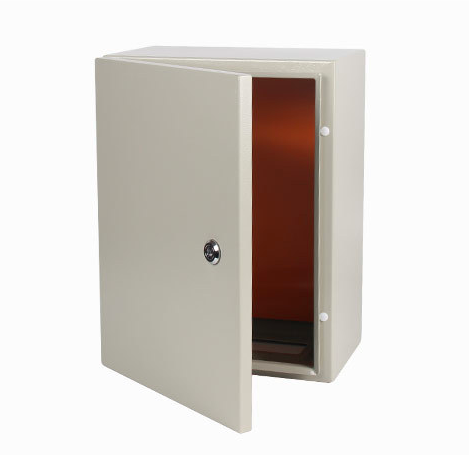

JXF Panel Box Series

JXF Waterproof panel board is a power distribution box designed and assembles into control functions according to type, specification and quantity of components. The material for the box is cold-rolled steel plate. Types of protection degree class: IP40, IP55, IP65.

※ Body and door manufactured in 1.2/1.5 mm sheet steel
※ Mounting plate with folded edge in 2.0 mm sheet steel
※ Finished with thermosetting epoxy polyester powder coating
※ Body and door textured finish

CONFIGURATION

JXF indoor/JFF outdoor metal enclosure box is designed to be assembled into the distributing board with various control functions according to the type of components, specification and quantity. It is made of cold-rolled steel board or stainless alloy. We can provide a wide range of cabinets for your reference.

SPECIFICATIONS


Model No. Size(MM) Description
FR2215 200x200x150 1.Body  and door manufactured in
1.2/1.5mm sheet steel.
2.Mounting plate with folded edge
in 2.0mm sheet steel
3.Finished with thermoseltting epoxy
polyester powder coating.
Body and door textured finish.
4.Mounting plate in smooth finish.
5.Protection Degree: IP55/IP65

Boxes  are complete with:
1).2 zincpassicated rails to be fixed on the door,
2).mounting plate,
3).Gland plate and gasket.
4).Package with hardware for earch
connection and  screws to mount all components
FR2515 250x200x150
FR2315 300x200x150
FR2320 300x200x200
FR3320 300x300x200
FR3325 300x300x250
FR3415 400x300x150
FR3420 400x300x200
FR3430 400x300x300
FR4415 400x400x150
FR4420 400x400x200
FR4425 400x400x250
FR4430 400x400x300
FR3515 500x300x150
FR3520 500x300x200
FR3525 500x300x250
FR3530 500x300x300
FR4515 500x400x150
FR4520 500x400x200
FR4525 500x400x250
FR4530 500x400x300
FR5515 500x500x150
FR5530 500x500x300
FR4615 600x400x150
FR4620 600x400x200 1.Body  and door manufactured in
1.2/1.5mm sheet steel.
2.Mounting plate with folded edge
in 2.0mm sheet steel
3.Finished with thermoseltting epoxy
polyester powder coating.
Body and door textured finish.
4.Mounting plate in smooth finish.
5.Protection Degree: IP55/IP65

Boxes  are complete with:
1).2 zincpassicated rails to be fixed on the door,
2).mounting plate,
3).Gland plate and gasket.
4).Package with hardware for earch
connection and  screws to mount all components
FR4630 600x400x300
FR5620 600x500x200
FR6615 600x600x150
FR6620 600x600x200
FR5720 700x500x200
FR5725 700x500x250
FR6720 700x600x200
FR6820 800x600x200
FR8820 800x800x200
FR6 1020 1000x600x200
FR6 1025 1000x600x250
FR6 1030 1000x600x300
FR8 1020 1000x800x200
FR10 1025 1000x1000x250
FR10 1030 1000x1000x300
FR6 1220 1200x600x200
FR8 1220 1200x800x200
FR6 1430 1400x600x300
FR8 1430 1400x800x300
FR8 1630 1600x800x300
FR10 1630 1600x1000x300
FR10 1830 1800x1000x300
