DISTRIBUTION BOX

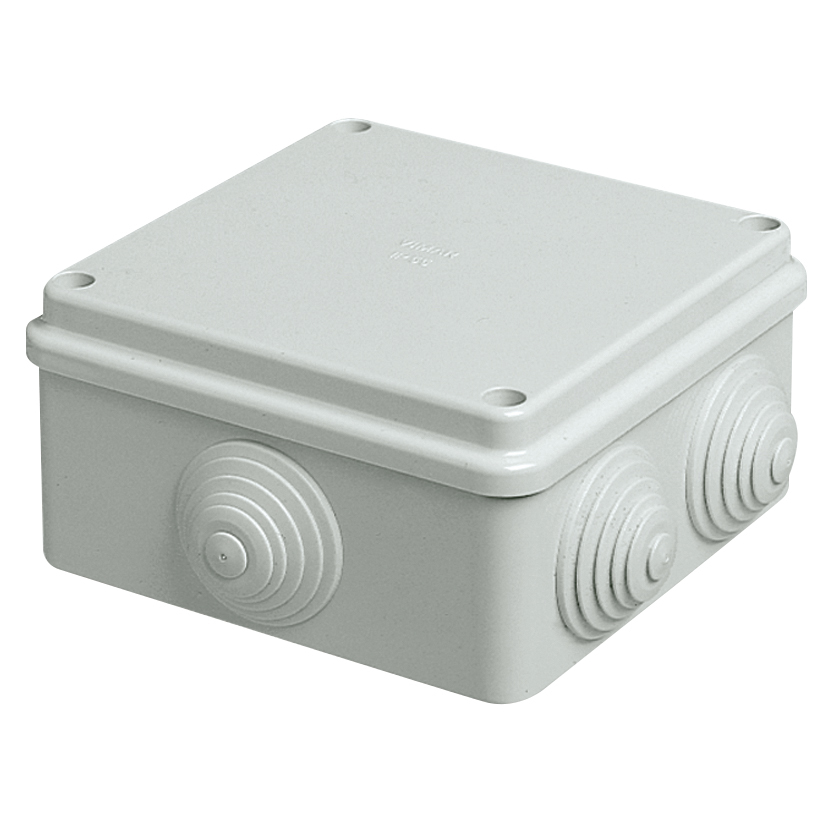

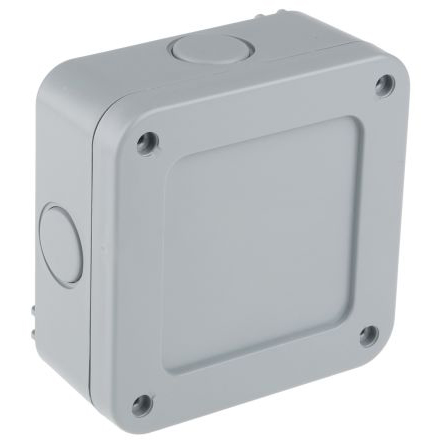

Junction Box Series

It is made of materials such as ABS and PC, etc, elegant external shape, high firmness. Combined body and cover are fixed with four plastic screws that are difficult to fall off. Its specification and size can be designed based on the customer requirements. Economic and affordable. Net weight only accounts for the iron box of about 1/4, to facilitate handling and operation, no corrosion, good insulation.

※ IP Rate:IP55
※ Body material:ABS
※ Stopper material:PVC
※ Material charcteristics:Impact,heat,low temperature and chemical
※ resistance,excellent electrical performance.

CONFIGURATION

Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry,electron,power system, railway, building,mine,air and sea port,hotel,ship,works,waste water treatment equipment, environmental equipment and so on.

SPECIFICATIONS

Model No. Hole Qty. （mm) Hole Size IP Rate G.W.(KGS) N.W.(KGS) Qty/Carton Carton Dimension(CM)
50×50 4 25 55 13.5 12.3 300 46×38×51
80×50 4 25 55 14.7 13.4 240 53×35×62
85×85×50 7 25 55 17.2 16 200 53×41×53
100×100×70 7 25 65 14.9 13.5 100 62×49×35
150×110×70 10 25 65 15.1 13.8 60 67×33×46.5
150×150×70 8 25 65 16.3 15 60 84.5×34×45
200×100×70 8 25 65 16.6 15.3 60 61×46×62
200×155×80 10 36 65 14.5 13.2 40 69.5×43.5×42
200×200×80 12 36 65 18 16.6 40 90×46×40.5
255×200×80 12 36 65 21.9 20.1 40 55×45×78.5
255×200×120 12 36 65 21.9 20.1 30 64×55×62
300×250×120 12 36 65 20.3 18.4 20 61.5×55.5×63
400×350×120 16 36 65 15 13.3 10 74.5×42.5×61.5

Cable Tie Mounts
Model No. L*W（mm） H（mm） T（mm） Screw Hole（mm） Avialable Color Packing
TM-20 20*20 6.1 5 2.9 White/Black 1000
TM-25 25*25 7.5 6.2 3.5 White/Black 500
TM-30 30*30 8.7 6.4 4.5 White/Black 500
TM-40 40*40 6.4 10.8 / White/Black 250
