SURGE PROTECTOR

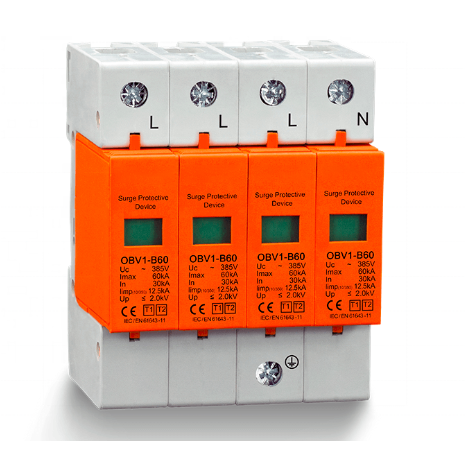

B Series

Surge Protection are designed to protect against lighting surge voltages.These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.

※ Conform to IEC61643-11 standards
※ Common mode or Common+Differential mode protection
※ Un Ac:500V
※ Class 1/Type 1 and Class 2/Type 2 available

CONFIGURATION

Surge Protection are designed to protect against lighting surge voltages.These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.

SPECIFICATIONS

Model No.: FRL-OB-B60
Maximum Continuous Operating Voltage Uc(V~):  320V 385V 420V
Voltage Protection Level Up(V~）kV: <1.8kV/2.0kV/2.2kV
Nominal Discharge Current (ln) kA: 30kA
Maximum Discharge Current (lmax) kA: 60kA
Response Time ns: <25ns
Standard: GB18802.1, IEC61643-1
The Cross Section of L/N Line(mm2): 16-25mm2
The Cross Section of PE Line(mm2): 16-25mm2
Fuse or Switch(A): 63A
Operating Environment (°C): -40℃~+85℃
Relative Humidity(25℃): <95%
Installation: Standard Rail 35mm
Material of Outer Covering: Enhanced flame retardant
