SURGE PROTECTOR

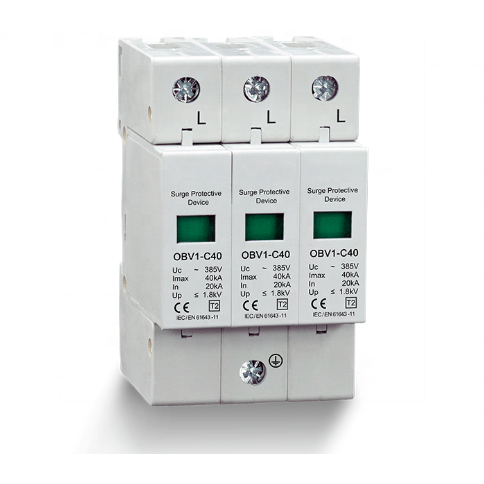

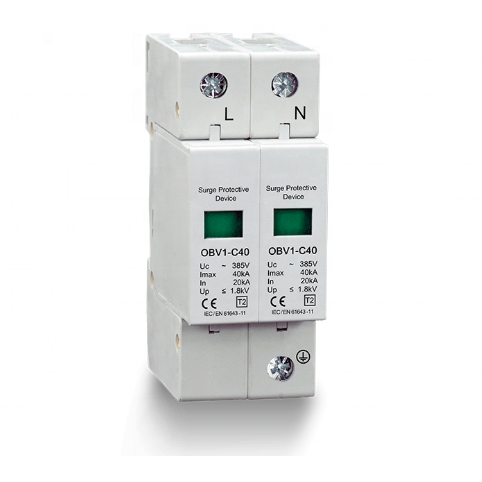

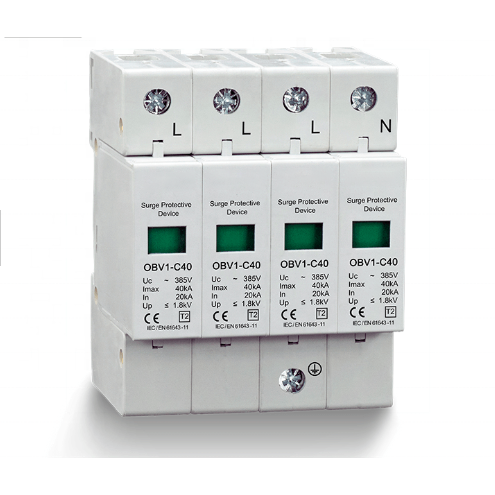

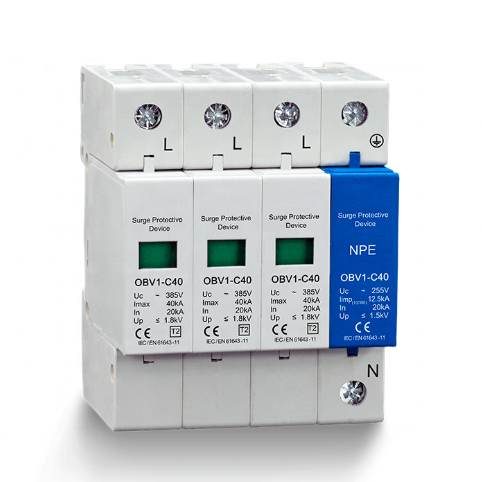

C Series

Surge Protection are designed to protect against lighting surge voltages.These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.

※ Conform to IEC61643-11 standards
※ Common mode or Common+Differential mode protection
※ Un Ac:500V
※ Class 1/Type 1 and Class 2/Type 2 available

CONFIGURATION

Surge Protection are designed to protect against lighting surge voltages.These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.

SPECIFICATIONS

Model No.: FRL-OB-C40
Maximum Continuous Operating Voltage Uc(V~): 275V 320V 385V 420V 440V
Voltage Protection Level Up(V~）kV: <1.2kV/1.5kV/1.8kV/2.0kV
Nominal Discharge Current (ln) kA: 20kA
Maximum Discharge Current (lmax) kA: 40kA
Response Time ns: <25ns
Standard: GB18802.1, IEC61643-1
The Cross Section of L/N Line(mm2): 10-16mm2
The Cross Section of PE Line(mm2): 10-16mm2
Fuse or Switch(A): 32A
Operating Environment (°C): -40℃~+85℃
Relative Humidity(25℃): <95%
Installation: Standard Rail 35mm
Material of Outer Covering: Enhanced flame retardant
