NAIL CABLE CLIPS

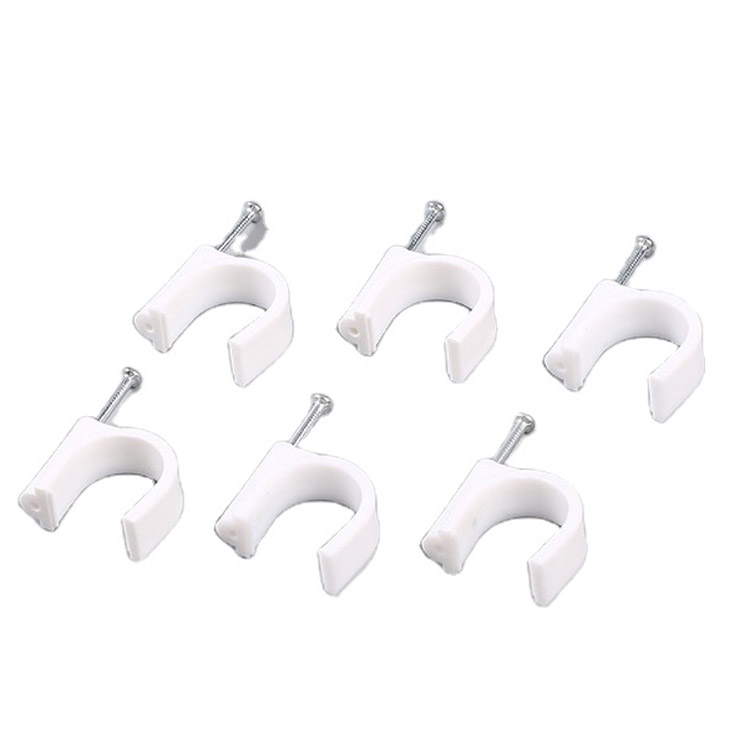

Nail Cable Clips

CONFIGURATION

Model No. H
MM 		R
MM 		Nail
MM 		Packing
4mm 5.3 4 1.7×15 100pcs/bag
5mm 6.5 5 1.7×15
6mm 8.1 6 1.7×17
7mm 8.7 7 1.8×19
8mm 9.6 8 1.9×21
9mm 10.7 9 2.0×22
10mm 11.7 10 2.05×25
12mm 12.8 12 2.05×27
14mm 14.9 14 2.4×32
16mm 16.9 16 2.5×35
18mm 20.8 18 2.5×37
20mm 23.6 20 2.8×42
22mm 25 22 2.8×48
25mm 27.7 25 3.2×48
30mm 33.1 30 3.2×53
35mm 36.6 35 3.2×58
40mm 45.2 40 3.4×60
Model No. （MM） H1(MM) R(MM) MM PACKING
4mm 6 3.8 4 1.7×15 100pcs/bag
5mm 6 3.8 5 1.7×15
6mm 6.5 4.1 6 1.7×16
7mm 7 4.7 7 1.9×18
8mm 7.5 6 8 2.05×20
9mm 8.2 5.4 9 2.05×23
10mm 8.6 5.7 10 2.3×23
12mm 9 6.1 12 2.3×25
14mm 11.2 6.5 14 2.4×30
Model No. H(mm) W(mm) D(mm) Suitable Wires Color
P-1 15 8.5 6.5 0.5-1.0mm2 (AWG22-18) Grey
P-2 18 10 7.5 1.0-1.5mm2 (AWG18-16) Blue
P-3 20 11.5 9.5 1.5-2.5mm2 (AWG16-14) Orange
P-4 23.5 13.5 10.8 2.5-4mm2 (AWG14-12) Yellow
P-5 23.5 15.5 12.7 4-6mm2 (AWG12-10) Red
