MINIATURE CIRCUIT BREAKER

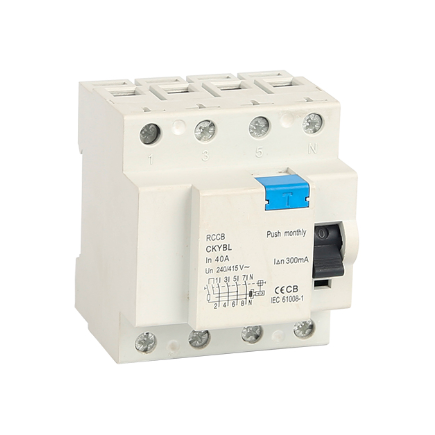

F360 Series

The RCCB provides protection against earth fault/leakage current and function of isolation, can automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

※ Overload,leakage protection
※ Fire retardant casing
※ High short-circuit current withstand capacity

CONFIGURATION

The RCCB is in conformity with the standard of IEC61008.The RCCB can cut off the fault circuit immeditaely on the occasion of shock hazard of earth leakage of truck. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for use in varieties of plants and enterprises,building construction 1 phase 230V and 3 phase 400V 50/60HZ.RCCB is not suitable for use on DC pulse system.

SPECIFICATIONS


Model No.: F360
No.of Poles: 2P, 4P
Rated Current(A): 16A,20A,25A,32A,40A,50A,63A,80A,100A
Rated Residual Operating Current(In)(mA): 10,30,100,300,500
Rated Residual Non-operation Current(Ino)(mA): ≤0.5In
Rated Voltage(Un): AC230(240V)/400(415V)
Residual Operating Current Scope: 0.5In~In
Residual Current Off-time: ≤0.3S
Short Circuit Capacity(Icu): 3000A
Endurance: 4000
Protection Degree: IP20
