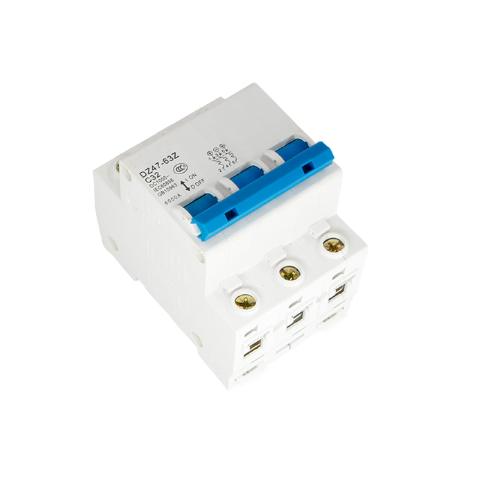

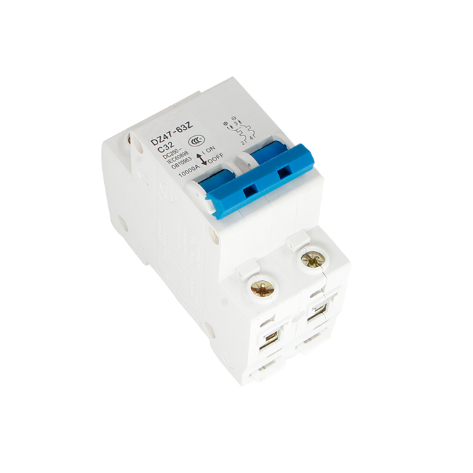

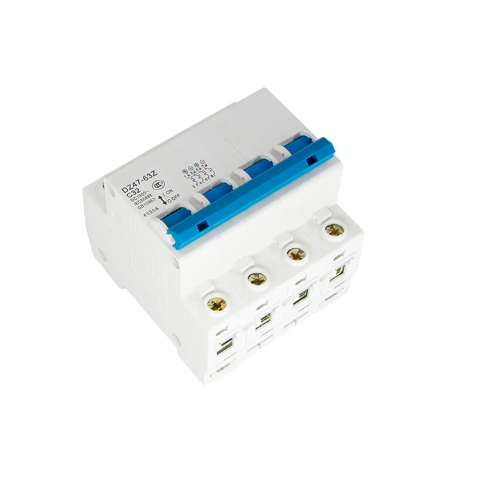

MINIATURE CIRCUIT BREAKER

C45N Series

MCB has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.

※ Available in 1 - 4 Pole
※ B, C or D Trip Curve
※ Standard Current Ratings of 1 to 63A

CONFIGURATION

C45 Mini Circuit Breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product,with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

SPECIFICATIONS

Model No.: C45N/DZ47
No.of Poles: 1P, 2P, 3P, 4P
Rated Current(In): 1A, 2A, 3A, 4A,5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Voltage(Un): AC230(240V)/400(415V)
Rated Frequency: 50/60HZ
Curve Type: B, C, D
Breaking Capacity(Cn): 4000A/6000A
Installation: Din Rail
Protection Degree: IP20

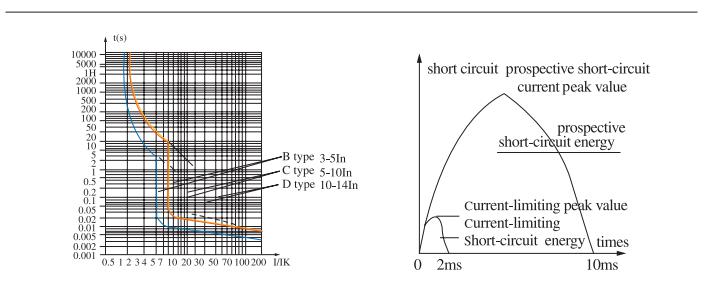

Characteristic Curve

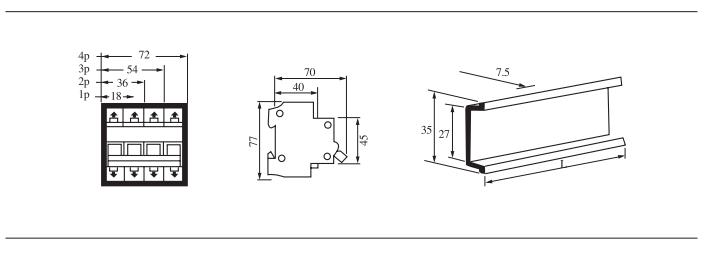

Dimensions
