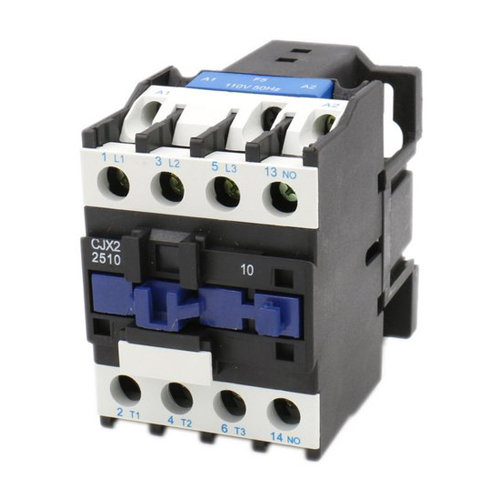

AC CONTACTOR

LC1-D Series

CJX2(LC1-D)AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting and controlling the AC motor.

※ High bolt strength.
※ Rated current up to 95A.
※ Low coil power consumption.
※ Both screw mounting and rail mounting.

CONFIGURATION

LC1-D AC Contactor is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting and machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta  starter.With the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC947-2,VDE0660,BS5442.


SPECIFICATIONS

Model No. LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standard power ratingsof 3
phase motors 50/60Hz incategory AC-3 		220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125

AC3 (x104) 100 100 100 100 80 80 60 60 60 60
AC4 (x104) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x104) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
3P+NC

Standard Control Circuit Voltage

Volts 24 42 48 110 220 230 240 380 400 415 440 500 600
50Hz B5 D5 E5 F5 M5 P5 U5 Q5 V5 N5 R5 S5 Y5
60Hz B6 D6 E6 F6 M6 - U6 Q6 - - R6 - -
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 - -
